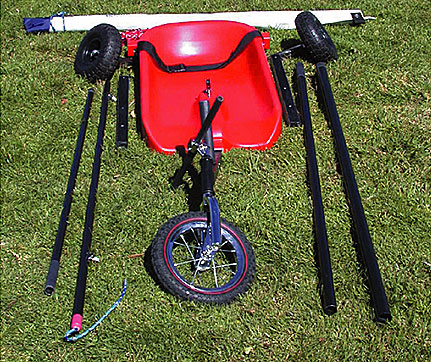

Step 1.
The Wind Chaser™ laid out and ready for assembly.
|

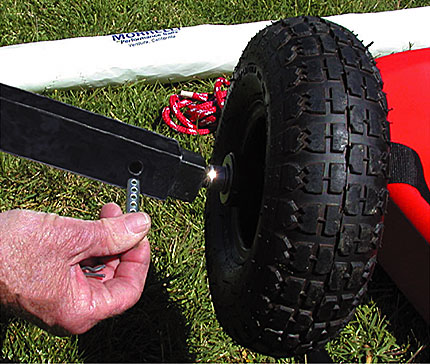

Step 2.
Snap wheels into hollow axles, then slide clevis pins into place and
lock with hairpin.
|

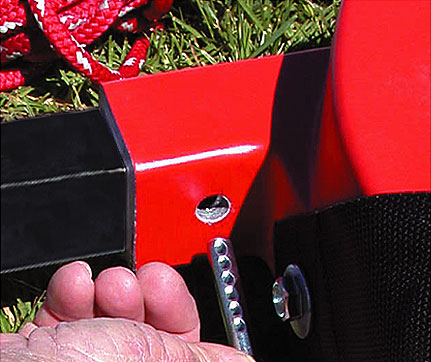

Step 3.
Place rear axles with wheel assembly into body, slide in clevis pins
and lock with hairpin.
|

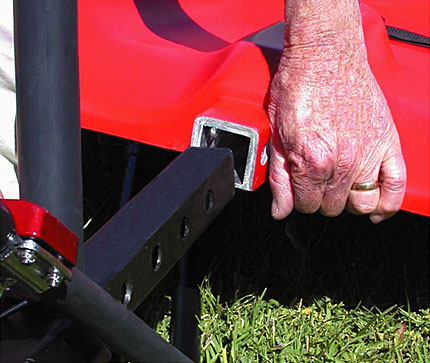

Step 4.
Lift front end of chassis, slide front wheel assembly into position...
|

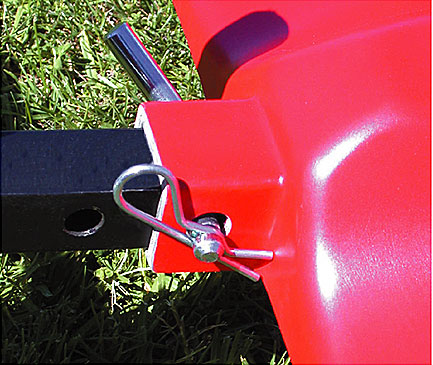

Step 5.
Then slide in the clevis pin locking it into place with the hair pin.
|
Step 6.
Assemble the 4 sections of the mast, slide the sail onto the mast, then
seat the mast/sail combination into front wheel assembly/mast holder.
|

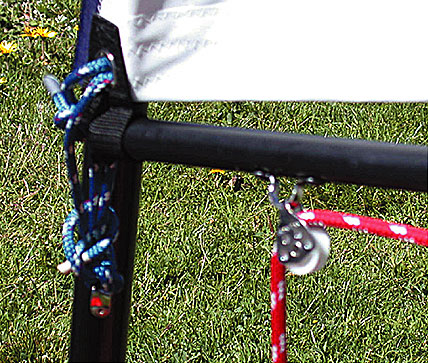

Step 7.
Thread the sail control line through the pulleys tying a figure eight
knot at the end of the line to prevent pull out.
|

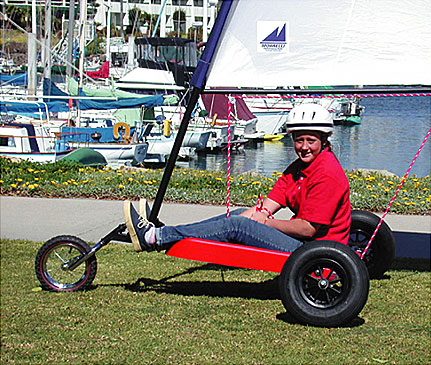

Step 8.
Within 10 minutes you are ready to board your Wind Chaser™
and start the fun!
|
